Products
EL.VER. was the designer and the producer of all the electronic cards that TECNONAUTICA s.r.l. used for about thirty years.
EL.VER. still produces and sells most of the cards for the old TECNONAUTICA s.r.l customers.
Below a partial list of all codes:
| Indicative image of the product |
Description |
EL.VER. code |
Tecnonautica code |
 |

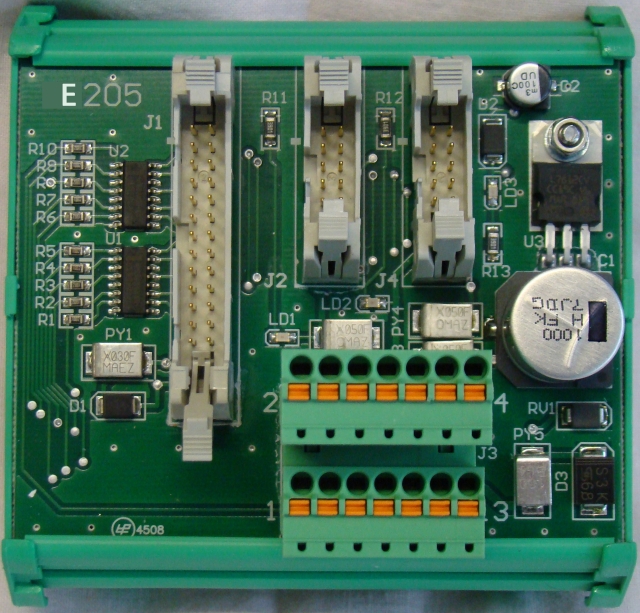

Inteface board for E222, E210, E211. |
E205 | TN205 |
 |

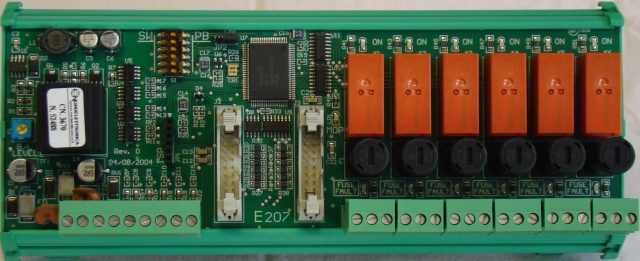

Dashboard card without bus |
E1207 |
TN207 |
 |

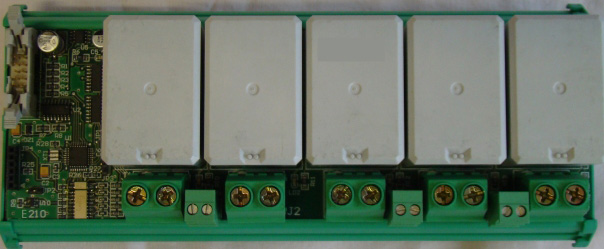

5 relay board 40A nominal without fuses. |
E1210 | TN210 |
 |

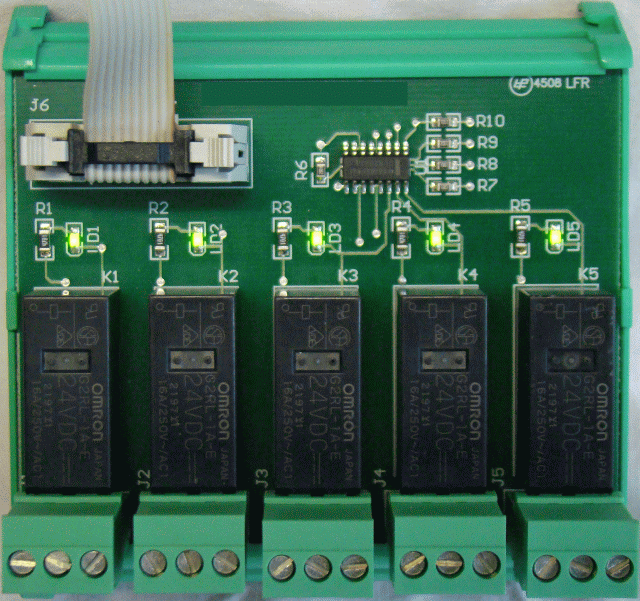

5 relay board, nominal 16A contact, without fuse. |
E211 | TN211 |
 |

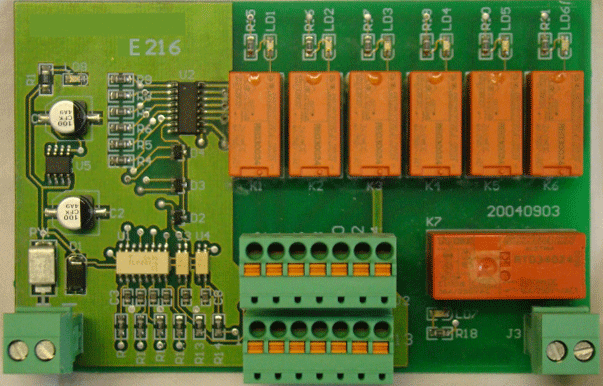

Control board for electric toilets, 6 optoisolated inputs and drive with relay 16A, without fuses. |
E216 | TN216 |
 |

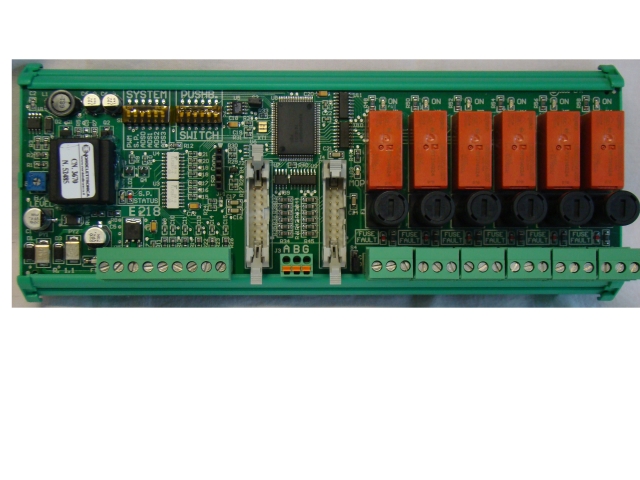

This board can be used with 1 or 2 keyboards through a 16 pins flat cable that allows an immediate connection. 6 relay 16A channels, individuality configurable monostable or bistable and individually protected with a 10A fuse. LED fuse trip shown by a red LED. Equipped with isolated bus RS-485 ready for our EPIC EVOLUTION monitoring system. |
E1218 | TN218 |
 |

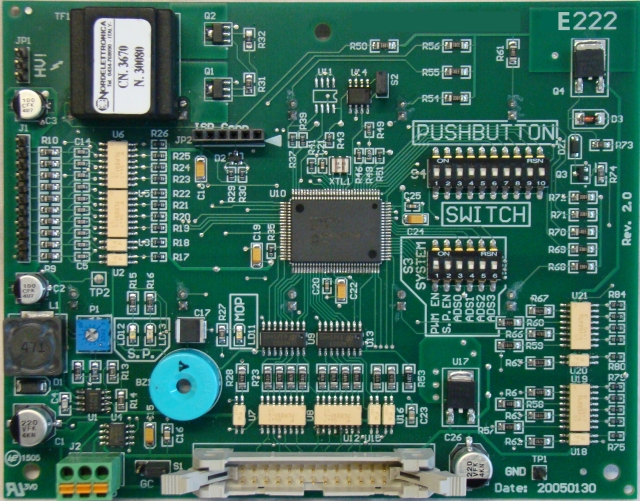

Switch Panel with 10 push button inputs and 10 LEDs. Every channel is configurable individually monostable or bistable. Equipped with bus RS-485 ready for our EPIC EVOLUTION monitoring system. |
E222 | TN222 |
 |

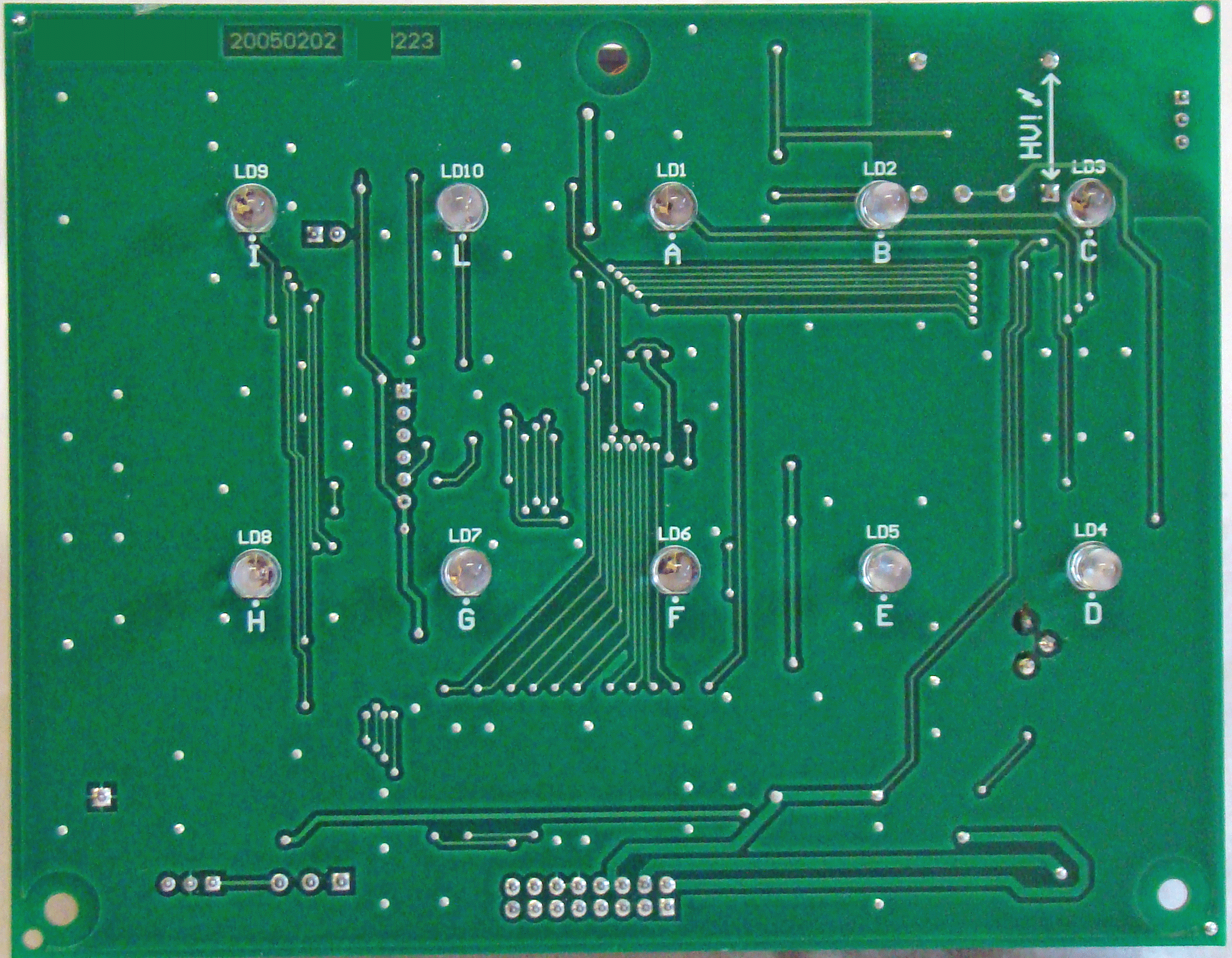

Warnings Panel with 10 LEDs. Requires E258 inteface (230 Vac signals) or E232 (24 Vdc signals). Equipped with bus RS-485 ready for our EPIC EVOLUTION monitoring system. |
E223 | TN223 |
 |

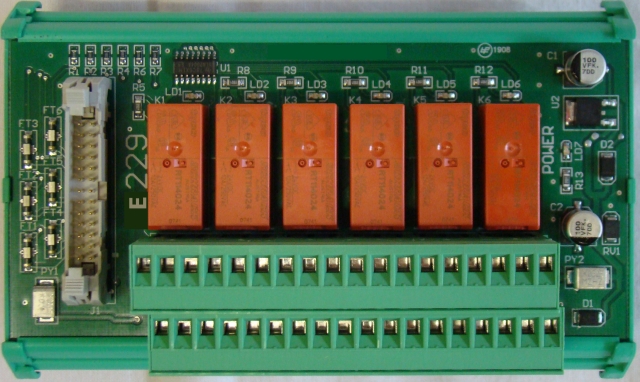

Interface board for TN267/261/208 Instrument Panel with 6 relay nominal 16A. Immediate connection with flat cable 26 circuits. |
E229 | TN229 |
 |

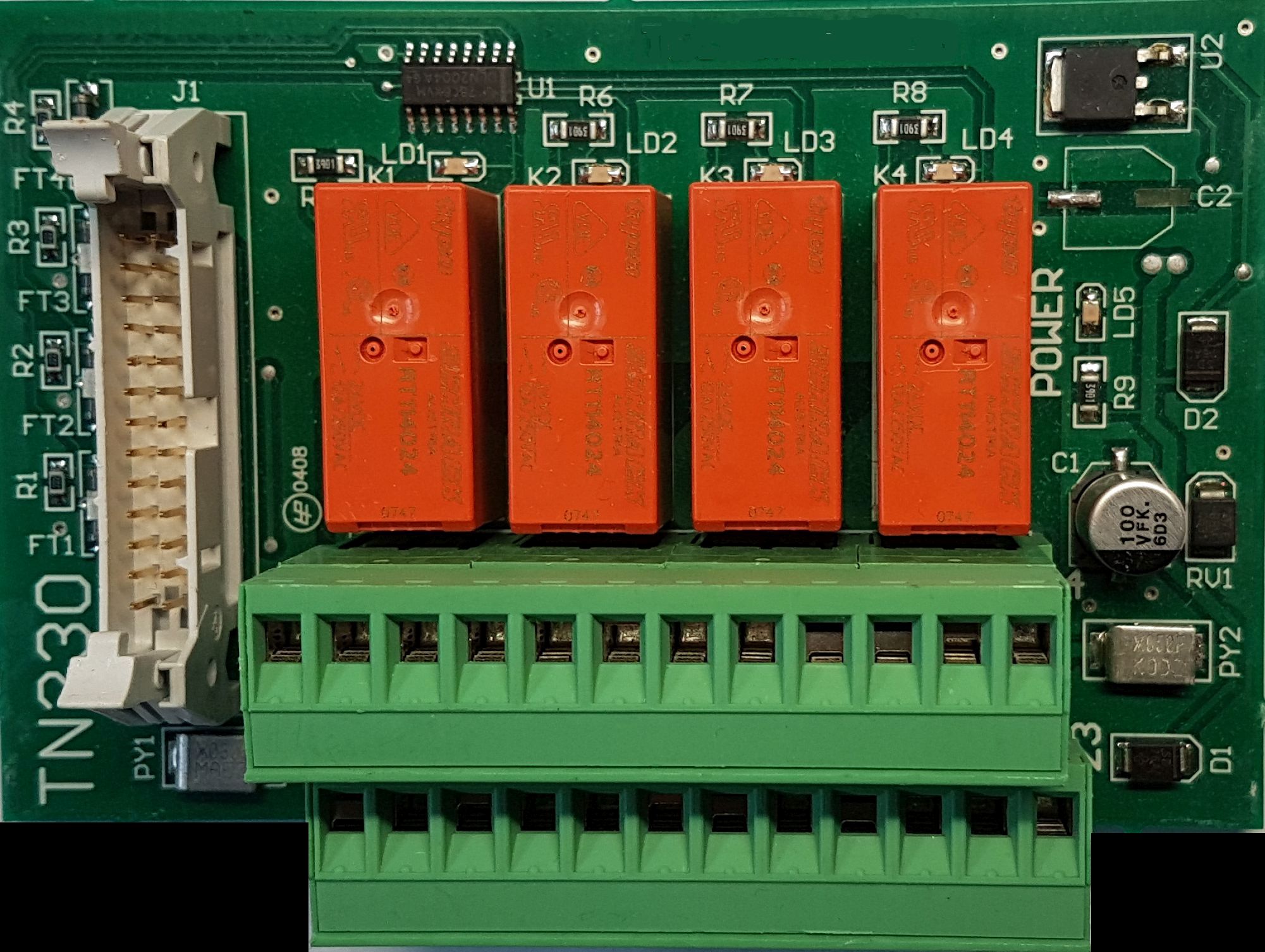

Interface board for TN267/261/208 Instrument Panel with 4 relay nominal 16A. Immediate connection with flat cable 26 circuits. |
E230 | TN230 |
 |

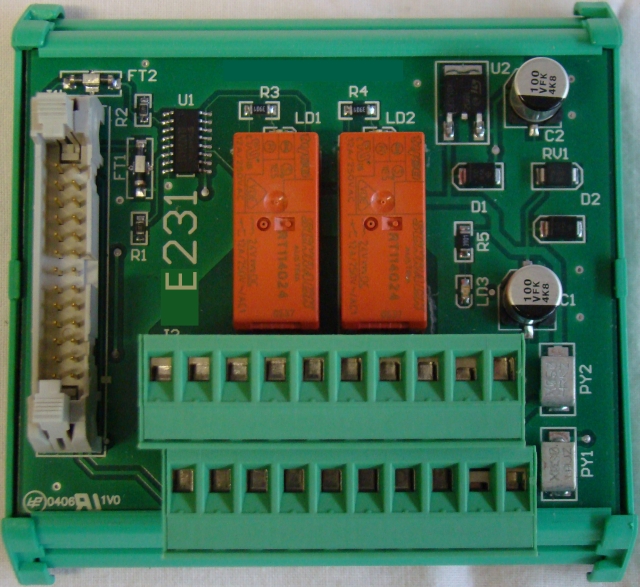

Interface board for TN267/261/208 with 2 relay nominal 16A. Immediate connection with flat cable 26 circuits. |
E231 | TN231 |
 |

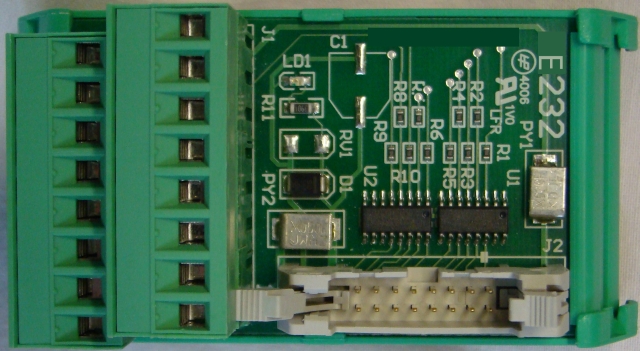

Inerface card for Warnings Panel TN223. 10 inputs 24 Vdc. |
E232 | TN232 |
 |

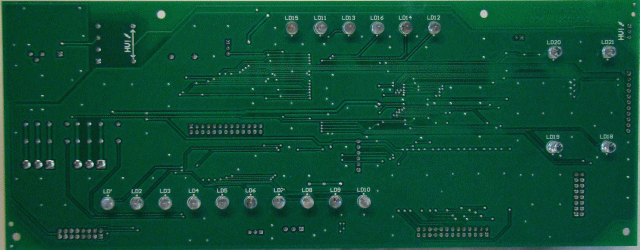

Generic 16-channel alarm panel. The alarms are displayed by 16 LEDs arranged on two rows. The upper one has 6 LEDs and the lower 10. Requires a TN268 Interface. Immediate connection with two flat cables 16 and 26 circuits. Equipped with bus RS-485 ready for our EPIC EVOLUTION monitoring system. New version still in development. |
E1234 | TN234 |
 |
Energy electronic saving device to drive big contactors with d.c. coil. With automatic duty cycle adjustment depending on the supply voltage. |
E238 | TN238 |
 |
Interface card for Warnings Panel TN223. 10 inputs 230 Vac. |
E258 | TN258 |
 |

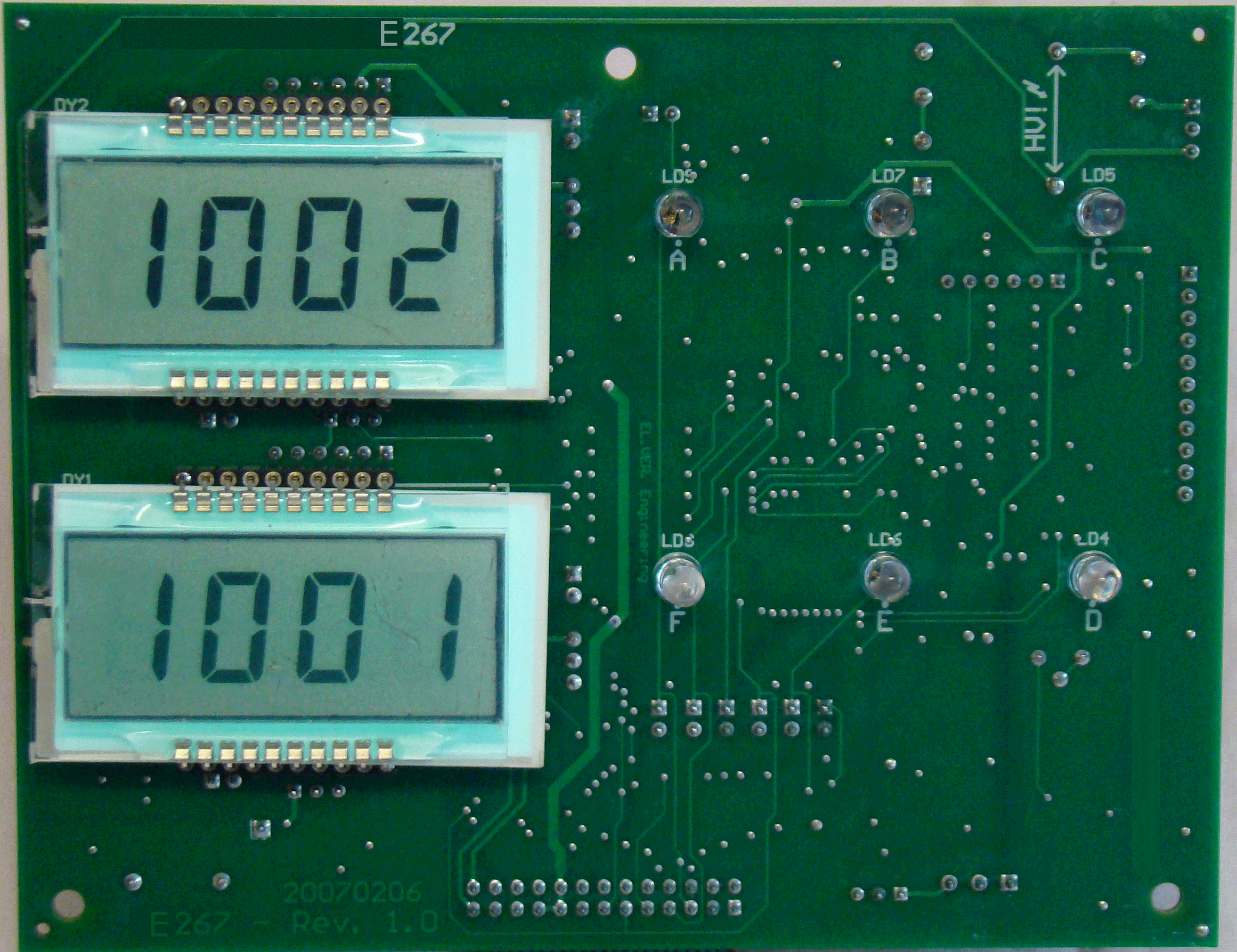

Instrument Panel with 6 push button inputs and 6 LEDs. Every channel is configurable individually monostable or bistable. Two insulated measuring channels, configurable voltmeter or ampmeter, depending on conditioning modules mounted on the back Equipped with bus RS-485 ready for our EPIC EVOLUTION monitoring system. |
TNS001 | TN267 |
 |
Interface card forAlarms Panel TN234. 16 inputs active low. Immediate connection with two flat cables 16 and 26 circuits. |
E268 | TN268 |
Ask EL.VER. if the card you need is not in the list: This email address is being protected from spambots. You need JavaScript enabled to view it.
